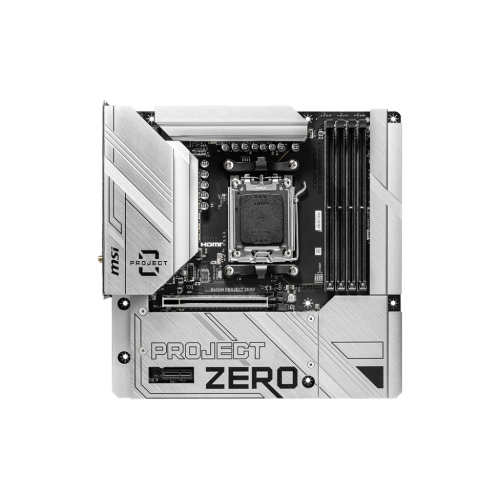

  • MSI B650M PROJECT ZERO
  • MSI B650M PROJECT ZERO
  • MSI B650M PROJECT ZERO
  • MSI B650M PROJECT ZERO

Основна информация

ПроизводителMSI
Part Number911-7E09-010
EAN / Код4711377126649
Гаранция36 месеца
Ключови характеристикиMSI B650 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 1xPCIEx16 1xPCIE1 WiFi

Технически характеристики

Vendor_urlhttps://www.msi.com/Motherboard/B650M-PROJECT-ZERO
Graphics1x HDMI™;Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz;1x DisplayPort;Support DP 1.4, maximum resolution of 4K 60Hz
Expansion slots1x PCI-E x16 slot;• Supports x16 (For Ryzen™ 9000/ 7000 Series processors);• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• Supports x4 (For Ryzen™ 8500/ 8300 Series processors);1x PCI-E x1 slot;PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage2x M.2;M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;4x SATA 6G;• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor;Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices;Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Memory type4x DDR5, Maximum Memory Capacity 256GB;Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz;Max. overclocking frequency:;• 1DPC 1R Max speed up to 7600+ MHz;• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz;• 2DPC 2R Max speed up to 5400+ MHz
Rear panel I/ODisplayPort;2.5G LAN;USB 2.0;USB 5Gbps (Type-A);Wi-Fi / Bluetooth;Audio connectors;Flash BIOS Button;Clear CMOS Button;HDMI™;USB 10Gbps (Type-A);USB 10Gbps (Type-C);USB 20Gbps (Type-C)
USB2x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front);3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear);1x USB 10Gbps Type C (Front);1x USB 20Gbps Type C (Rear)
Connectors1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x CPU Fan;1x Pump Fan;3x System Fan;2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);3x Addressable V2 RGB LED connector (JARGB_V2);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;2x USB 5Gbps Type A ports;1x USB 10Gbps Type C ports
AudioRealtek® ALC897 Codec;7.1-Channel High Definition Audio;Supports up to 32-Bit/384 kHz playback on front panel
LanRealtek® RTL8125BG 2.5Gbps LAN
WirelessAMD Wi-Fi 6E;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX;Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands;Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth5.3
Form factormATX, 243.84mmx243.84mm
OSSupport for Windows® 11 64-bit, Windows® 10 64-bit
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
Технически характеристики
Audio Realtek® ALC897 Codec;7.1-Channel High Definition Audio;Supports up to 32-Bit/384 kHz playback on front panel
Bluetooth 5.3
Connectors 1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x CPU Fan;1x Pump Fan;3x System Fan;2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);3x Addressable V2 RGB LED connector (JARGB_V2);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;2x USB 5Gbps Type A ports;1x USB 10Gbps Type C ports
Expansion slots 1x PCI-E x16 slot;• Supports x16 (For Ryzen™ 9000/ 7000 Series processors);• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• Supports x4 (For Ryzen™ 8500/ 8300 Series processors);1x PCI-E x1 slot;PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Form factor mATX, 243.84mmx243.84mm
Graphics 1x HDMI™;Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz;1x DisplayPort;Support DP 1.4, maximum resolution of 4K 60Hz
LAN Realtek® RTL8125BG 2.5Gbps LAN
Memory type 4x DDR5, Maximum Memory Capacity 256GB;Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz;Max. overclocking frequency:;• 1DPC 1R Max speed up to 7600+ MHz;• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz;• 2DPC 2R Max speed up to 5400+ MHz
OS Support for Windows® 11 64-bit, Windows® 10 64-bit
Rear panel I/O DisplayPort;2.5G LAN;USB 2.0;USB 5Gbps (Type-A);Wi-Fi / Bluetooth;Audio connectors;Flash BIOS Button;Clear CMOS Button;HDMI™;USB 10Gbps (Type-A);USB 10Gbps (Type-C);USB 20Gbps (Type-C)
Storage 2x M.2;M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;4x SATA 6G;• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor;Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices;Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 2x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front);3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear);1x USB 10Gbps Type C (Front);1x USB 20Gbps Type C (Rear)
Vendor_url https://www.msi.com/Motherboard/B650M-PROJECT-ZERO
Warranty 36 Months
Wireless AMD Wi-Fi 6E;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX;Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands;Supports 802.11 a/ b/ g/ n/ ac/ ax

MSI B650M PROJECT ZERO

  • Производител: MSI
  • Код на продукта: 911-7E09-010
  • Наличност: Външен склад (по заявка)
  • По заявка — доставка 3–7 работни дни

  • 186.56 € / 364.89 лв.

  • Без данък: 155.47 € / 304.07 лв.
