Основна информация

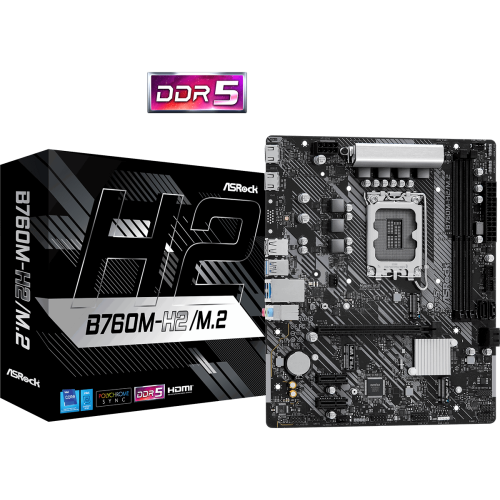

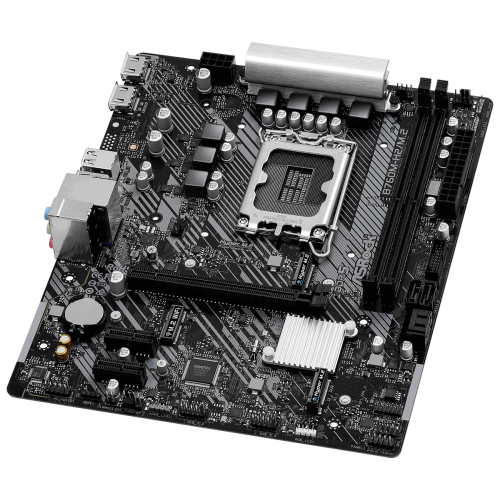

| Производител | ASROCK |
|---|
| Part Number | B760M-H2/M.2 |
|---|
| EAN / Код | 4710483944215 |
|---|
| Гаранция | 36 месеца |
|---|
| Ключови характеристики | ASROCK B760 2xDDR5 4xSATA3 2xHDMI 2xM2 GLAN 1xPCIEx16 2xPCIEx1 |
|---|
Технически характеристики
| Vendor_url | https://www.asrock.com/MB/Intel/B760M-H2M.2/index.asp#Specification |
|---|
| Graphics | - Intel® Xe Graphics Architecture (Gen 12); - 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
|---|
| Chipset | - Intel® B760 |
|---|
| Expansion slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|---|
| Storage | Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors |
|---|
| Memory type | - Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 96GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
|---|

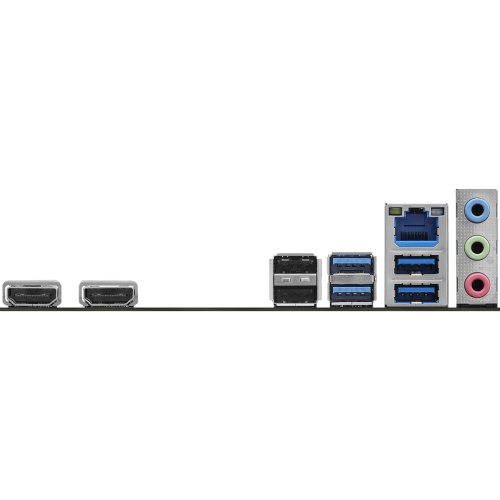

| Rear panel I/O | - 2 x Antenna Mounting Points; - 2 x HDMI Ports; - 4 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Connectors | - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|---|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|---|
| Lan | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control |
|---|
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
|---|
| Form factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
|---|
| OS | - Microsoft Windows® 10 64-bit / 11 64-bit |
|---|
| Warranty | 36 Months |
|---|
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
| Технически характеристики |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Chipset | - Intel® B760 |
| Connectors | - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Expansion slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Form factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12); - 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control |
| Memory type | - Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 96GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| OS | - Microsoft Windows® 10 64-bit / 11 64-bit |
| Rear panel I/O | - 2 x Antenna Mounting Points; - 2 x HDMI Ports; - 4 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Storage | Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors |
| Vendor_url | https://www.asrock.com/MB/Intel/B760M-H2M.2/index.asp#Specification |
| Warranty | 36 Months |
