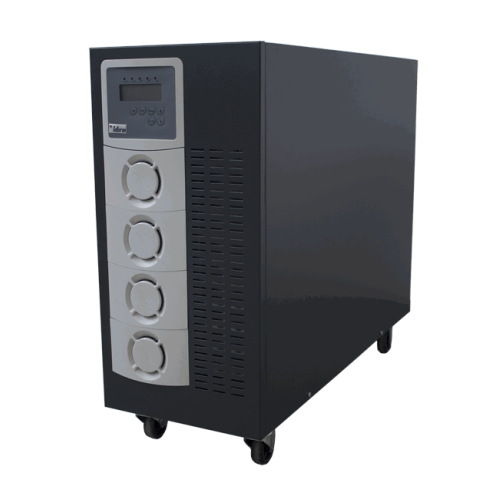

Основна информация
| Производител | INFORM |
|---|
| Part Number | 805011003001 |
|---|
| EAN / Код | FP1103-2 |
|---|
| Гаранция | 24 месеца |
|---|
| Ключови характеристики | INFORM UPS 3000VA PURE_SINE_WAVE RS-232 SNMP |
|---|
Технически характеристики
| Vendor_url | https://www.informups.com/dsp-flexipower-series-3kva-to-10kva.html |
|---|
| Input | Phase Configuration 1Ph + N + PE;Nominal Voltage 220V/230/240V;Minimum Voltage 160 V;Maximum Voltage 288 V;Frequency ± 5 Hz;Power Factor 0.99 |
|---|
| Output | Power Factor 0.8;Phase Configuration 1Ph + N + PE;Nominal Voltage 220V / 230 / 240V (adjustable);Wave Form Pure Sine Wave;Total Harmonic Distortion at 100% linear load <3%;Frequency 50Hz or 60Hz (adjustable);Frequency Tolerance (free running) ±0.2 %;Static Voltage Regulation (0%-100% load) <1%;Crest Factor 3:1;Transfer Time 0 sec;Overload 30 sec @ (106%-120%), 10 sec @ (120%-150%);Total Efficiency ?90% |
|---|
| Communication | Interface (Communication ports) Standard RS232 port and optional RS485, Internal SNMP, Dry Contact Cards |
|---|
| Battery | Type Maintenance-free lead acid batteries;Recharge Time (for Internal Battery) 4-6h up to 90%;Quantity per String 6pcs 12V Batteries;Voltage 72 VDC;Internal Batteries (Optional) 7Ah, 9Ah;Cold Start Present |
|---|
| Display | LED + LCD Display Line Mode, Back up Mode, Eco Mode, Bypass Supply, Battery Low, Battery Bad/Disconnect, Overload, UPS Fault, Interruption during transfer;LCD Display Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load%, Battery Voltage, Internal Temperature;Self Diagnostics Upon Power On, Front Panel Setting and Through Software Control, 24h routine Check |
|---|
| Standarts | EN62040-1-1 (Safety); EN62040-2 (EMC) |
|---|
| Environment | Operating Temperature 0 ?C.... + 40?C;Proposed Temp. to extend battery life 20 - 25 ?C;Humidity 0 - 95% (non-condensing);Audible Noise at 1 m;Protection Class IP 20 |
|---|
| Weight | 19kg |
|---|
| Dimensions | 449x226x454mm |
|---|
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
| Технически характеристики |
| Battery | Type Maintenance-free lead acid batteries;Recharge Time (for Internal Battery) 4-6h up to 90%;Quantity per String 6pcs 12V Batteries;Voltage 72 VDC;Internal Batteries (Optional) 7Ah, 9Ah;Cold Start Present |
| Communication | Interface (Communication ports) Standard RS232 port and optional RS485, Internal SNMP, Dry Contact Cards |
| Dimensions | 449x226x454mm |
| Display | LED + LCD Display Line Mode, Back up Mode, Eco Mode, Bypass Supply, Battery Low, Battery Bad/Disconnect, Overload, UPS Fault, Interruption during transfer;LCD Display Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load%, Battery Voltage, Internal Temperature;Self Diagnostics Upon Power On, Front Panel Setting and Through Software Control, 24h routine Check |
| Environment | Operating Temperature 0 ?C.... + 40?C;Proposed Temp. to extend battery life 20 - 25 ?C;Humidity 0 - 95% (non-condensing);Audible Noise at 1 m;Protection Class IP 20 |
| Input | Phase Configuration 1Ph + N + PE;Nominal Voltage 220V/230/240V;Minimum Voltage 160 V;Maximum Voltage 288 V;Frequency ± 5 Hz;Power Factor 0.99 |
| Output | Power Factor 0.8;Phase Configuration 1Ph + N + PE;Nominal Voltage 220V / 230 / 240V (adjustable);Wave Form Pure Sine Wave;Total Harmonic Distortion at 100% linear load <3%;Frequency 50Hz or 60Hz (adjustable);Frequency Tolerance (free running) ±0.2 %;Static Voltage Regulation (0%-100% load) <1%;Crest Factor 3:1;Transfer Time 0 sec;Overload 30 sec @ (106%-120%), 10 sec @ (120%-150%);Total Efficiency ?90% |
| Standarts | EN62040-1-1 (Safety); EN62040-2 (EMC) |
| Vendor_url | https://www.informups.com/dsp-flexipower-series-3kva-to-10kva.html |
| Warranty | 24 Months |
| Weight | 19kg |
