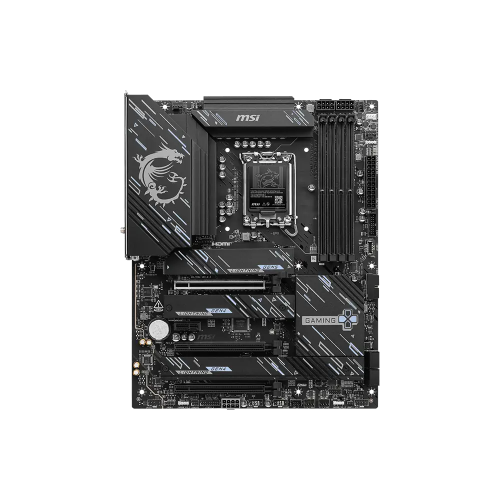

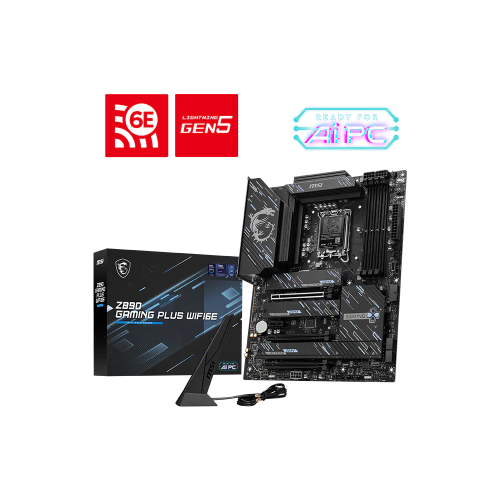

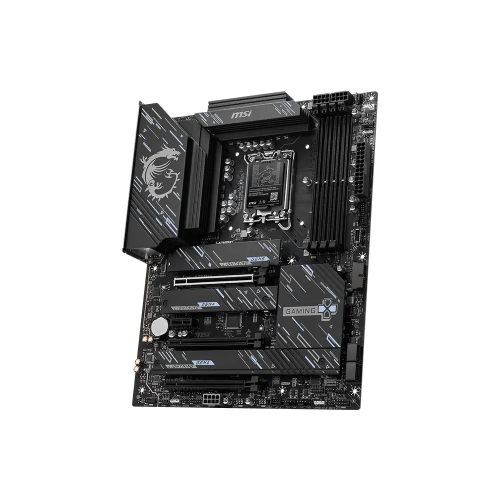

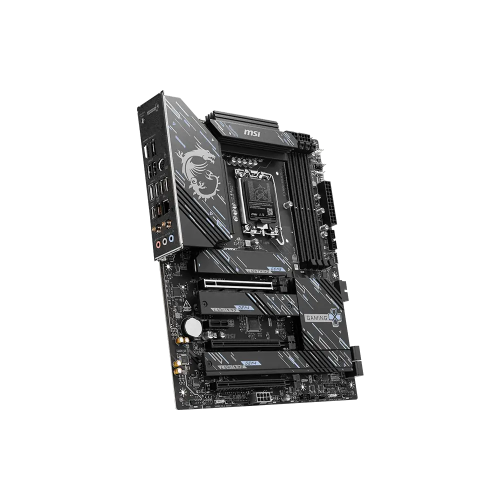

MSI Z890 GAMING PLUS WIFI6E
MSI Z890 GAMING PLUS WIFI6E MSI Z890 GAMING PLUS WIFI6E MSI Z890 GAMING PLUS WIFI6E MSI Z890 GAMING PLUS WIFI6E

Основна информация

ПроизводителMSI
Part Number911-7E34-020
EAN / Код4711377431118
Гаранция36 месеца

Технически характеристики

Vendor_urlhttps://www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI6E
ManufacturerMSI
SocketLGA 1851
Graphics1x HDMI™;
Support HDMI™ 2.1, maximum resolution of 4K 60Hz;
1x DisplayPort;
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2)
ChipsetINTEL Z890
Expansion slots3x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage4x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices;
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices;
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices;
4x SATA 6G
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Memory type4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 9200+ MT/s;
• 1DPC 2R Max speed up to 7200+ MT/s;
• 2DPC 1R Max speed up to 6400+ MT/s;
• 2DPC 2R Max speed up to 5600+ MT/s;

Supports Intel® POR Speed and JEDEC Speed;
Supports Memory Overclocking and Intel® XMP 3.0;
Supports Dual-Controller Dual-Channel mode;
Supports Non-ECC, Un-buffered memory;
Supports CUDIMM

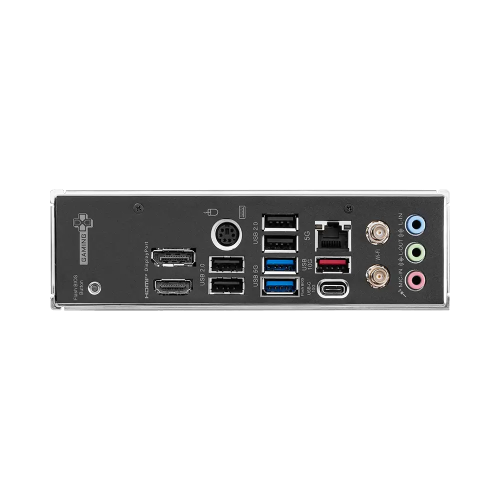

Rear panel I/O1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x Power Connector(PCIE_PWR 8pin);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
5x System Fan;
1x EZ Conn-header (JAF_1);
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Tuning Controller connector(JDASH);
3x Addressable V2 RGB LED connector (JARGB_V2);
1x RGB LED connector(JRGB);
1x TPM pin header(Support TPM 2.0);
4x USB 2.0 ports;
4x USB 5Gbps Type A ports;
1x USB 20Gbps Type C ports
USB4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
4x USB 5Gbps Type A (Front);
1x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear);
1x USB 20Gbps Type C (Front)
AudioRealtek® ALC897 Codec;
7.1-Channel High Definition Audio
LanIntel® Killer™ E5000 5Gbps LAN
WirelessWi-Fi 6E module;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax
OSSupport for Windows® 11 64-bit
DimensionsATX
243.84mmx304.8mm
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
Технически характеристики
AudioRealtek® ALC897 Codec; 7.1-Channel High Definition Audio
ChipsetINTEL Z890
CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2)
DimensionsATX 243.84mmx304.8mm
Expansion slots3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Graphics1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz
LANIntel® Killer™ E5000 5Gbps LAN
ManufacturerMSI
Memory type4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9200+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM
OSSupport for Windows® 11 64-bit
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Rear panel I/O1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 5x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports
SocketLGA 1851
Storage4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
USB4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front)
Vendor_urlhttps://www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI6E
Warranty36 Months
WirelessWi-Fi 6E module; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax
