Основна информация
| Производител | ASUS |
|---|
| Part Number | 90MB1I70-M0EAY0 |
|---|
| EAN / Код | 4711387754818 |
|---|
| Гаранция | 36 месеца |
|---|
| Ключови характеристики | ASUS Z890 4xDDR5 4xSATA3 RAID HDMI DP 4xM2 GLAN 4xPCIEx16 WiFi |
|---|
Технически характеристики
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-z890-p-wifi/ |
|---|
| Graphics | 1 x DisplayPort;1 x HDMITM port;1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs |
|---|
| Chipset | Intel® Z890 Chipset |
|---|
| Expansion slots | Intel® Core™ Ultra Processors (Series 2);1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;2 x PCIe 4.0 x16 slots (support x4 mode);1 x PCIe 4.0 x16 slot (supports x1 mode) |
|---|
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors (Series 2);M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);4 x SATA 6Gb/s ports |
|---|
| Memory type | 4 x DIMM slots, max. 256GB, DDR5;Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII) |
|---|

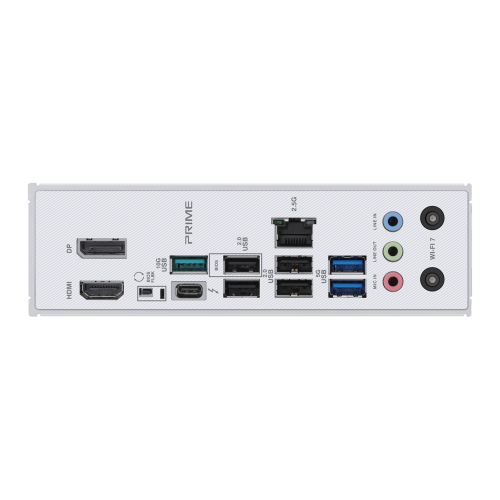

| Rear panel I/O | 1 x Thunderbolt™ 4 USB Type-C® port;1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMITM port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button |
|---|
| USB | Rear USB (Total 8 ports);1 x Thunderbolt™ 4 port (1 x USB Type-C®);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 9 ports);1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|
| Connectors | Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU;Power connector;Storage related;4 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1pin);1 x 10-1 pin Front Panel System header;1 x Thunderbolt™ (USB4®) header |
|---|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection,;Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers |
|---|
| Lan | 1 x Realtek 2.5Gb Ethernet;ASUS LANGuard |
|---|
| Wireless | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate |
|---|
| Bluetooth | Bluetooth® v5.4 |
|---|
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
|---|
| OS | Windows 11 (22H2 & later) |
|---|
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
| Технически характеристики |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection,;Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Bluetooth | Bluetooth® v5.4 |
| Chipset | Intel® Z890 Chipset |
| Connectors | Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU;Power connector;Storage related;4 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1pin);1 x 10-1 pin Front Panel System header;1 x Thunderbolt™ (USB4®) header |
| Expansion slots | Intel® Core™ Ultra Processors (Series 2);1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;2 x PCIe 4.0 x16 slots (support x4 mode);1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Graphics | 1 x DisplayPort;1 x HDMITM port;1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs |
| LAN | 1 x Realtek 2.5Gb Ethernet;ASUS LANGuard |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5;Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII) |
| OS | Windows 11 (22H2 & later) |
| Rear panel I/O | 1 x Thunderbolt™ 4 USB Type-C® port;1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMITM port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors (Series 2);M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);4 x SATA 6Gb/s ports |
| USB | Rear USB (Total 8 ports);1 x Thunderbolt™ 4 port (1 x USB Type-C®);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 9 ports);1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-z890-p-wifi/ |
| Warranty | 36 Months |
| Wireless | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate |
