Основна информация
| Производител | ASUS |
|---|---|
| Part Number | 90MB1IT0-M0EAY0 |
| EAN / Код | 4711387723036 |
| Гаранция | 36 месеца |
| Ключови характеристики | ASUS X870 4xDDR5 4xSATA3 RAID HDMI 4xM2 GLAN 3xPCIEx16 WiFi |
Технически характеристики
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p/ |
|---|---|
| Manufacturer | ASUS |
| Graphics | 1 x HDMI™ port;2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Expansion slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**;AMD X870 Chipset;2 x PCIe 4.0 x16 slots (support x1 mode) |
| Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*;M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**;2 x SATA 6Gb/s ports**;* PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.;** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors;ECC and Non-ECC, Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP) |

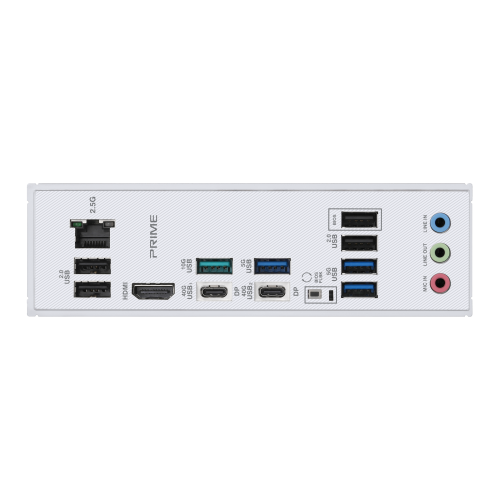

| Rear panel I/O | 2 x USB4® (40Gbps) ports (2 x USB Type-C®);1 x USB 10Gbps port (1 x Type-A);3 x USB 5Gbps ports (3 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x HDMI™ port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button |
| USB | Rear USB (Total 10 ports);2 x USB4® (40Gbps) ports (2 x USB Type-C®);1 x USB 10Gbps port (1 x Type-A);3 x USB 5Gbps ports (3 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Connectors | Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;4 x M.2 slots (Key M);2 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin System Panel header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers |
| Lan | 1 x Realtek 2.5Gb Ethernet;ASUS LANGuard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | ATX Form Factor, 30.5 cm x 24.4 cm |
| OS | Windows 11, Windows 10 64-bit |
| Warranty | 36 Months |
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
| Технически характеристики | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD X870 Chipset |
| Connectors | Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;4 x M.2 slots (Key M);2 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin System Panel header |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Expansion slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**;AMD X870 Chipset;2 x PCIe 4.0 x16 slots (support x1 mode) |
| Form factor | ATX Form Factor, 30.5 cm x 24.4 cm |
| Graphics | 1 x HDMI™ port;2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| LAN | 1 x Realtek 2.5Gb Ethernet;ASUS LANGuard |
| Manufacturer | ASUS |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors;ECC and Non-ECC, Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP) |
| OS | Windows 11, Windows 10 64-bit |
| Rear panel I/O | 2 x USB4® (40Gbps) ports (2 x USB Type-C®);1 x USB 10Gbps port (1 x Type-A);3 x USB 5Gbps ports (3 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x HDMI™ port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button |
| Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*;M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**;2 x SATA 6Gb/s ports**;* PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.;** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| USB | Rear USB (Total 10 ports);2 x USB4® (40Gbps) ports (2 x USB Type-C®);1 x USB 10Gbps port (1 x Type-A);3 x USB 5Gbps ports (3 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p/ |
| Warranty | 36 Months |
