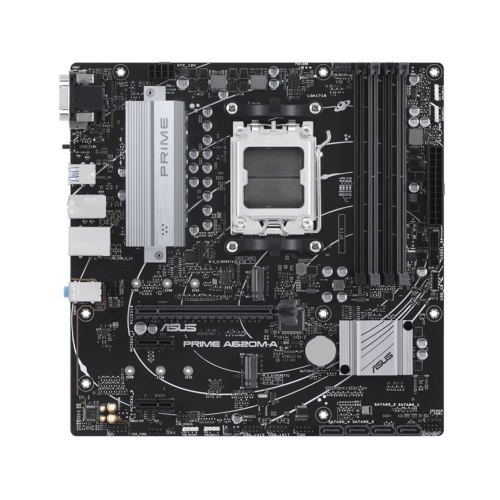

ASUS PRIME A620M-A-CSM
ASUS PRIME A620M-A-CSM ASUS PRIME A620M-A-CSM ASUS PRIME A620M-A-CSM

Основна информация

ПроизводителASUS
Part Number90MB1F10-M0EAY0
EAN / Код4711387176405
Гаранция36 месеца
Ключови характеристикиASUS A620 4xDDR5 4xSATA3 HDMI DP VGA 2xM2 GLAN 1xPCIEx16 1xPCIEx1

Технически характеристики

Vendor_urlhttps://www.asus.com/motherboards-components/motherboards/csm/prime-a620m-a-csm/
ManufacturerASUS
Graphics1 x DisplayPort;1 x VGA port;1 x HDMI™ port
CPU's supportedAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD A620 Chipset
Expansion slotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD A620 Chipset;2 x PCIe 3.0 x1 slots
StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode);AMD A620 Chipset;4 x SATA 6Gb/s ports
Memory type4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);OptiMem II

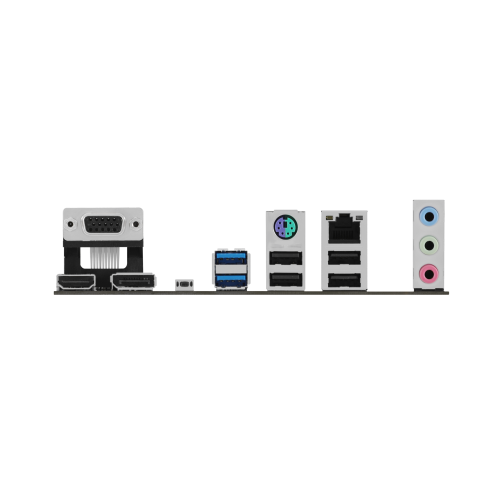

Rear panel I/O2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x VGA port;1 x HDMI™ port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button;1 x PS/2 Keyboard/Mouse combo port
USBRear USB (Total 6 ports);2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®);1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
ConnectorsFan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® );1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x S/PDIF Out header;1 x Speaker header;1 x SPI TPM header (14-1pin);1 x 10-1 pin System Panel header
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Lan1 x Realtek 1Gb Ethernet
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factormicro-ATX Form Factor;24.4 cm x 24.4 cm
OSWindows® 11, Windows® 10 64-bit
Warranty36 Months
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
Технически характеристики
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
BIOS256 Mb Flash ROM, UEFI AMI BIOS
ChipsetAMD A620 Chipset
ConnectorsFan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® );1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x S/PDIF Out header;1 x Speaker header;1 x SPI TPM header (14-1pin);1 x 10-1 pin System Panel header
CPU's supportedAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Expansion slotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD A620 Chipset;2 x PCIe 3.0 x1 slots
Form factormicro-ATX Form Factor;24.4 cm x 24.4 cm
Graphics1 x DisplayPort;1 x VGA port;1 x HDMI™ port
LAN1 x Realtek 1Gb Ethernet
ManufacturerASUS
Memory type4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);OptiMem II
OSWindows® 11, Windows® 10 64-bit
Rear panel I/O2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x VGA port;1 x HDMI™ port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button;1 x PS/2 Keyboard/Mouse combo port
StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode);AMD A620 Chipset;4 x SATA 6Gb/s ports
USBRear USB (Total 6 ports);2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®);1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
Vendor_urlhttps://www.asus.com/motherboards-components/motherboards/csm/prime-a620m-a-csm/
Warranty36 Months
