Основна информация
| Производител | MSI |
|---|
| Part Number | 911-7D48-062 |
|---|
| EAN / Код | 4711377002660 |
|---|
| Гаранция | 36 месеца |
|---|
| Ключови характеристики | MSI H610 2xDDR4 4xSATA3 HDMI VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1 |
|---|
Технически характеристики
| Vendor_url | https://www.msi.com/Motherboard/PRO-H610M-E-DDR4/Specification |
|---|
| Graphics | 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2 |
|---|
| Chipset | Intel® H610 Chipset |
|---|
| Expansion slots | 1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From H610 chipset); Supports PCIe 3.0 x1 |
|---|
| Memory type | 2x DDR4 memory slots, support up to 64GB 1; Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory |
|---|

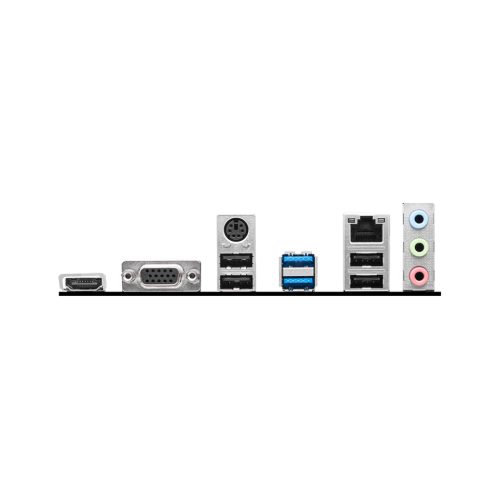

| Rear panel I/O | HDMI™; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0 |
|---|
| Connectors | 4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper |
|---|
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
|---|
| Lan | 1x Realtek® RTL8111H 1Gbps LAN controller |
|---|
| Form factor | M-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
|---|
| Warranty | 36 Months |
|---|
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
| Технически характеристики |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
| Chipset | Intel® H610 Chipset |
| Connectors | 4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper |
| Expansion slots | 1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From H610 chipset); Supports PCIe 3.0 x1 |
| Form factor | M-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Graphics | 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2 |
| LAN | 1x Realtek® RTL8111H 1Gbps LAN controller |
| Memory type | 2x DDR4 memory slots, support up to 64GB 1; Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Rear panel I/O | HDMI™; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0 |
| Vendor_url | https://www.msi.com/Motherboard/PRO-H610M-E-DDR4/Specification |
| Warranty | 36 Months |
