Основна информация
| Производител | ASUS |
|---|---|
| Part Number | 90MB1L20-M0EAY0 |
| EAN / Код | 4711387987544 |
| Гаранция | 36 месеца |
Технически характеристики
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850-e-wifi/ |
|---|---|
| Manufacturer | ASUS |
| Graphics | 1 x DisplayPort;1 x HDMI™ port |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Expansion slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B850 Chipset;1 x PCIe 4.0 x16 slot (supports x1 mode);1 x PCIe 4.0 x1 slot |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*;AMD B850 Chipset;M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports;* Specifications vary by CPU types.;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP) |

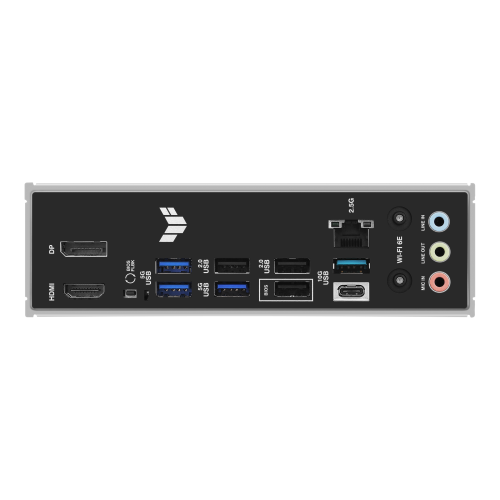

| Rear panel I/O | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®);3 x USB 5Gbps ports (3 x Type-A);3 x USB 2.0 ports (3 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button |
| USB | Rear USB (Total 8 ports);2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®);3 x USB 5Gbps ports (3 x Type-A);3 x USB 2.0 ports (3 x Type-A);Front USB (Total 7 ports);1 x USB 20Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB Type-C® power delivery output: max. 5V/3A. |
| Connectors | Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;1 x 4-pin +12V CPU Power connector;Storage Related3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 20Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable RGB Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front Panel System header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Lan | 1 x Realtek 2.5Gb Ethernet;TUF LANGuard |
| Wireless | Wi-Fi 6E;2x2 Wi-Fi 6E (802.11ax);Supports 2.4/5/6GHz frequency band;Bluetooth® v5.3 |
| Bluetooth | 5.3 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | ATX Form Factor;30.5 cm x 24.4 cm |
| OS | Windows 11, Windows 10 64-bit |
| Warranty | 36 Months |
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
| Технически характеристики | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Bluetooth | 5.3 |
| Chipset | AMD B850 Chipset |
| Connectors | Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;1 x 4-pin +12V CPU Power connector;Storage Related3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 20Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable RGB Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front Panel System header |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Expansion slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B850 Chipset;1 x PCIe 4.0 x16 slot (supports x1 mode);1 x PCIe 4.0 x1 slot |
| Form factor | ATX Form Factor;30.5 cm x 24.4 cm |
| Graphics | 1 x DisplayPort;1 x HDMI™ port |
| LAN | 1 x Realtek 2.5Gb Ethernet;TUF LANGuard |
| Manufacturer | ASUS |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP) |
| OS | Windows 11, Windows 10 64-bit |
| Rear panel I/O | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®);3 x USB 5Gbps ports (3 x Type-A);3 x USB 2.0 ports (3 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*;AMD B850 Chipset;M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports;* Specifications vary by CPU types.;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| USB | Rear USB (Total 8 ports);2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®);3 x USB 5Gbps ports (3 x Type-A);3 x USB 2.0 ports (3 x Type-A);Front USB (Total 7 ports);1 x USB 20Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB Type-C® power delivery output: max. 5V/3A. |
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850-e-wifi/ |
| Warranty | 36 Months |
| Wireless | Wi-Fi 6E;2x2 Wi-Fi 6E (802.11ax);Supports 2.4/5/6GHz frequency band;Bluetooth® v5.3 |
