1-2 дни доставка
Основна информация
| Производител | ASUS |
|---|---|
| Part Number | 90MB1EZ0-MOEAY0 |
| EAN / Код | 4711387164303 |
| Гаранция | 36 месеца |
Технически характеристики
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620m-plus/ |
|---|---|
| Manufacturer | Asus |

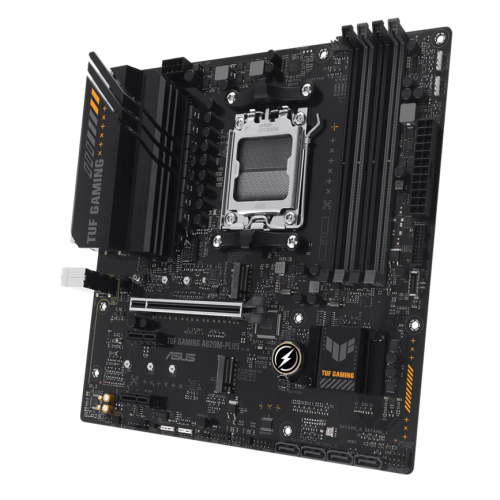

| Model | TUF GAMING A620M-PLUS |
| Graphics | 2 x DisplayPort**; 1 x HDMI™ port***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1. |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors; Supports up to AMD 170W CPU |
| Chipset | AMD A620A Chipset |
| Expansion slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD A620A Chipset; 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode); AMD A620A Chipset; 4 x SATA 6Gb/s ports |
| RAID | AMD RAIDXpert2 Technology; Ryzen™ 9000 Series Processors: RAID 0/1/5/10; Ryzen™ 8000 Series Processors: RAID 0/1; Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Memory type | 4 x DIMM slots, max. 192GB, DDR5 ECC and Non-ECC Un-buffered DIMM; Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) |
| Rear panel I/O | 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 2 x DisplayPort; 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack™ button; 1 x PS/2 keyboard/mouse combo port |
| USB | Rear USB (Total 6 ports); 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C® power delivery output: max. 5V/3A |
| Connectors | Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x 10-1 pin Front Panel System header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Lan | 1 x Realtek 2.5Gb Ethernet; TUF LANGuard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | micro-ATX Form Factor |
| OS | Windows 11, Windows 10 64-bit |
| Dimensions | 24.4 cm x 24.4 cm |
Наличност: Артикулът е наличен по заявка от Външен склад. Свържете се с нас.
| Технически характеристики | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD A620A Chipset |
| Connectors | Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x 10-1 pin Front Panel System header |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors; Supports up to AMD 170W CPU |
| Dimensions | 24.4 cm x 24.4 cm |
| Expansion slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD A620A Chipset; 1 x PCIe 3.0 x1 slot |
| Form factor | micro-ATX Form Factor |
| Graphics | 2 x DisplayPort**; 1 x HDMI™ port***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1. |
| LAN | 1 x Realtek 2.5Gb Ethernet; TUF LANGuard |
| Manufacturer | Asus |
| Memory type | 4 x DIMM slots, max. 192GB, DDR5 ECC and Non-ECC Un-buffered DIMM; Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) |
| Model | TUF GAMING A620M-PLUS |
| OS | Windows 11, Windows 10 64-bit |
| RAID | AMD RAIDXpert2 Technology; Ryzen™ 9000 Series Processors: RAID 0/1/5/10; Ryzen™ 8000 Series Processors: RAID 0/1; Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Rear panel I/O | 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 2 x DisplayPort; 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack™ button; 1 x PS/2 keyboard/mouse combo port |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode); AMD A620A Chipset; 4 x SATA 6Gb/s ports |
| USB | Rear USB (Total 6 ports); 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C® power delivery output: max. 5V/3A |
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620m-plus/ |
| Warranty | 36 Months |
